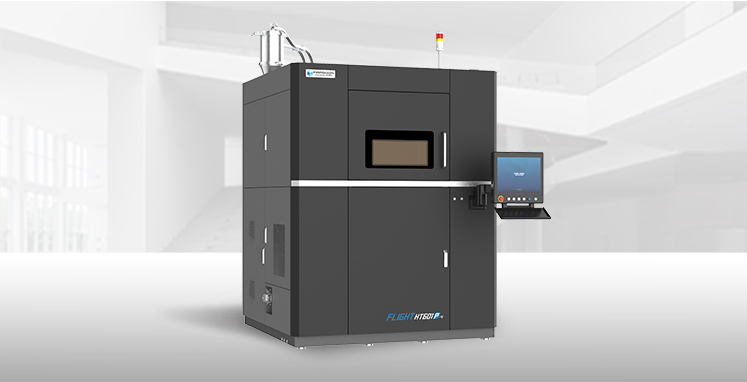

Flight® HT601P-4
Flight® HT601P-4
a CAMS System
Large-format Polymer LPBF system designed for high-speed, industrial serial production.
Showcasing Flight® Technology Quad-laser Configuration
The Farsoon Flight® HT601P-4 is a high-speed polymer PBF system with four 300W fiber lasers, enabling 20 m/s scanning—faster than traditional CO₂ lasers. Its 600 × 600 × 600 mm build volume supports industrial-scale production. Operating at up to 220°C, it processes high-performance materials like PA6 and TPU. With advanced powder handling and multi-laser strategies, it outperforms competitors in speed, efficiency, and part quality.
Industrial Applications with Flight® HT601P-4

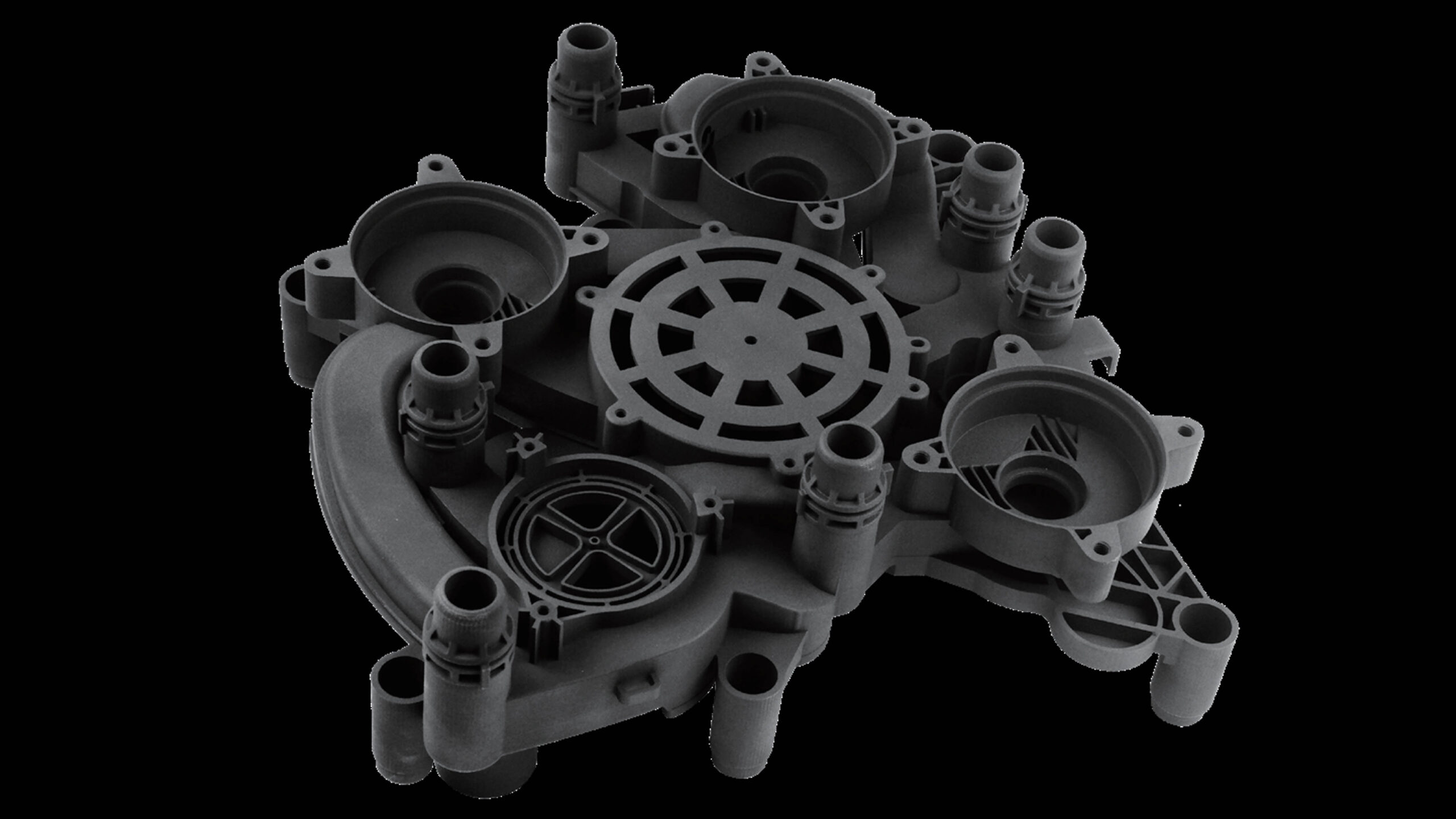

Automotive Flow Channel plate
- Machine: Flight® HT601P-4 Quad-laser system
- Material: FS3201PA-F
The 3D-printed automotive flow channel plate, made with PA12, features intricate geometries for optimized fluid dynamics. Produced using the Flight® HT601P-4, it ensures high precision, durability, and thermal resistance. This lightweight yet robust component enhances fuel efficiency and performance, making it ideal for next-generation automotive cooling and fluid management systems.

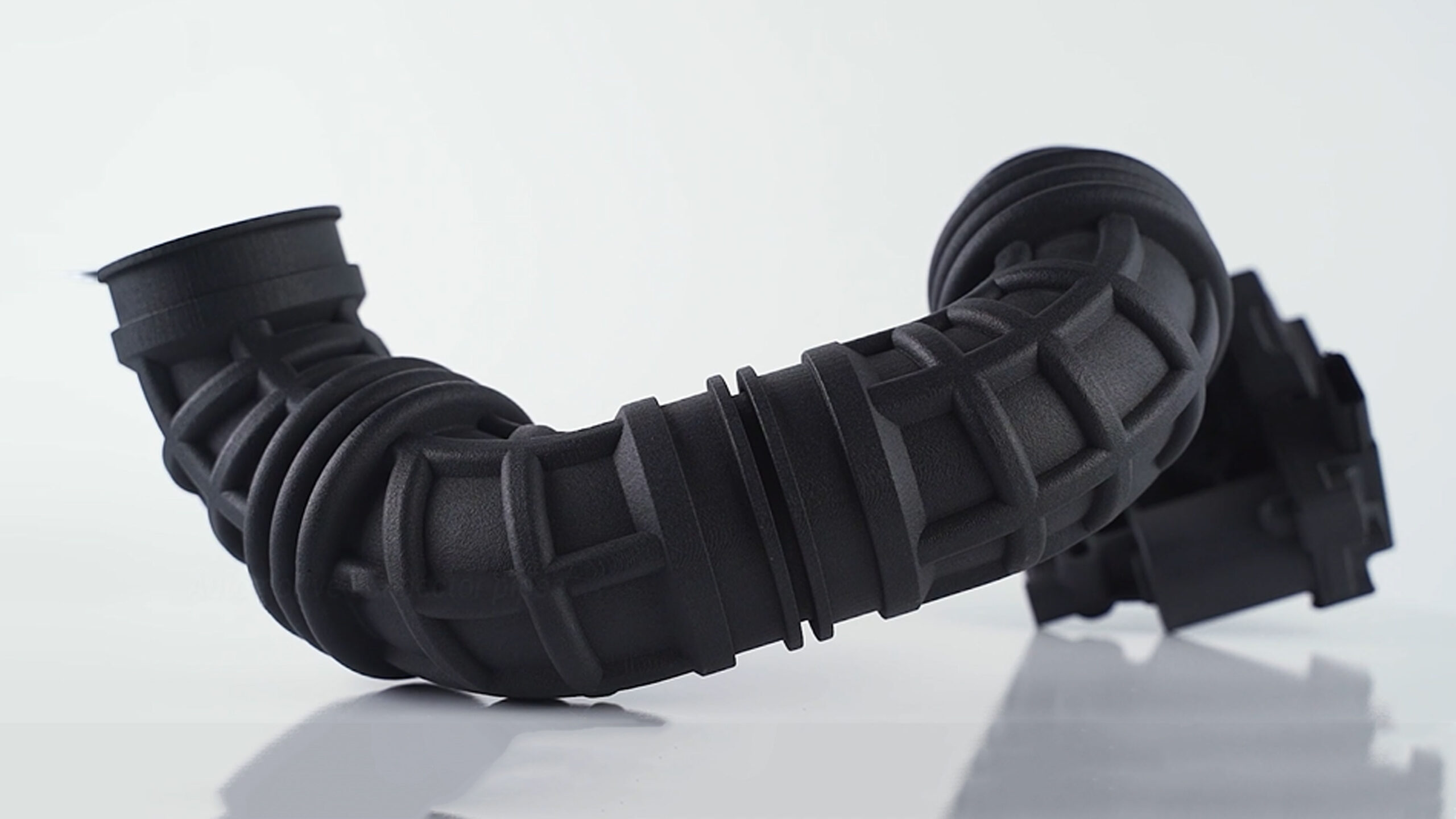

Automotive Connector Pipes
- Machine: Flight® HT601P-4 Quad-laser system
- Material: FS6130CF-F (Carbon Fiber reinforced PA6 with carbon black)
The 3D-printed automotive connector pipes, produced on the Flight® HT601P-4 quad-laser system, utilize FS6130CF-F, a carbon fiber-reinforced PA6 with carbon black. This high-strength, heat-resistant material ensures durability and precision. The lightweight yet robust pipes enhance performance in automotive fluid and air management systems, offering superior mechanical properties and design flexibility.
HT1001P-2 Technical Data
|
TECHNICAL DATA
|
Flight® HT601P-4
|
|---|---|
|
External Dimensions (L×W×H)
|
1862×1832×2350 mm (73.3×72.1×92.5 in)
|
|
Build Cylinder Size1（L×W×H）
|
600×600×600 mm ( 23.6×23.6×23.6 in )
|
|
Net Weight
|
Approx. 3300 kg (7275.3 lb)
|
|
Laser Type
|
Fiber Lasers, 4×300W
|
|
Scanner
|
High-precision three-axis digital galvo system
|
|
Layer Thickness
|
0.06~0.3 mm ( 0.0024-0.0118 in)
|
|
Scanning Speed
|
Max. 20 m/s (66 ft/s)
|
|
Max. Chamber Temperature
|
220°C ( 428℉ )
|
|
Thermal Field Control
|
Multi-zone heater & Intelligent temperature control systems
|
|
Temperature Regulation
|
Continuous real-time build surface temperature monitoring & optimization
|
|
Operating System
|
64 bit Windows 10
|
|
Comprehensive Software
|
BuildStar, MakeStar®
|
|
Data File Format
|
STL
|
|
Key Software Features
|
Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
|
|
Inert Gas Protection
|
Nitrogen
|
|
Power Supply
|
EUR/China: 400V±10%, 3~/N/PE, 50/60Hz, 50A
US: transformer sold with machine |
|
Operating Ambient Temperature
|
22-28°C ( 71.6-82.4℉ )
|
|
Materials
|
FS3200PA-F, FS3201PA-F, FS3401GB-F, FS6140GF-F, FS6130CF-F, WANFAB-PU95AB, Ultrasint® TPU 88A black, Ultrasint® PA11 Black, more materials to come
|
