A Powerful + Flexible Platform for Material Development And High-temperature Applications

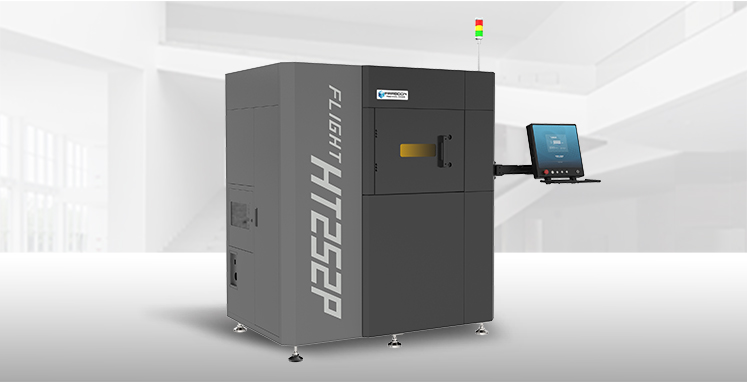

Introducing FLIGHT® 252P Series
The implementing of innovative FLIGHT® Technology on 252P super-temperature capable platform offers a powerful and compact machine solution for material development, providing enhanced part features as well as improved cost-performance ratio.
Industrial Applications with FLIGHT® 252P Series

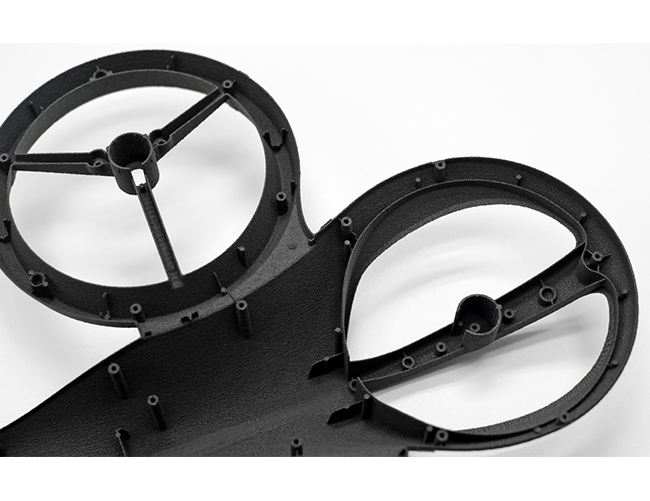

Mini-drone Components
- Machine: FLIGHT® HT252P
- Material: FS3300PA-F
- Wall thickness: 0.3 mm
YZH is a professional part supplier for electronic designer models like RC cars and mini-drones. The parts usually involve intricate details which need to be operated in extreme conditions including collision and drops. This series produced end-use mini-drone frame part is fabricated with FS3300PA-F material on FLIGHT® HT252P; it showcases high accuracy detail features for assembly and strong mechanical properties in operation.

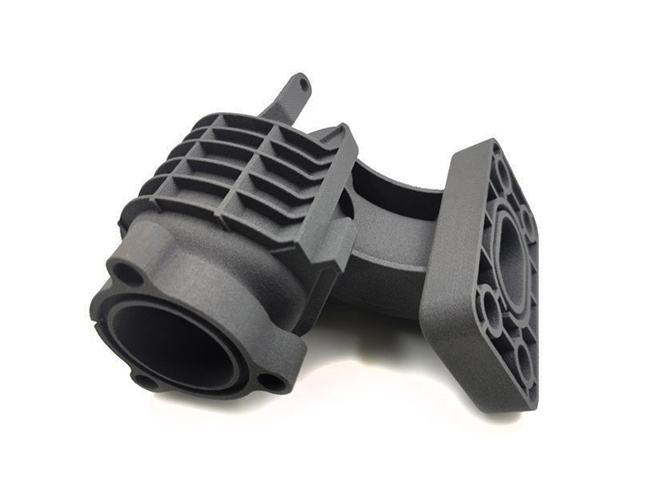

Engine Intake Manifold
- Machine: FLIGHT® HT252P
- Material: Customized PA6 material
- Size: 170 × 140 × 90mm
This intake manifold module is designed for functional testing on a passenger vehicle engine system.
With advanced additive technology engineers are able to create the new design according to the dynamic boundary conditions of the engine; and fabricate in one-piece without the need to split the part into multiple sections for production and assembly with conventional process. Fabricated with customized PA6 with glass bead filled material, the intake manifold module is able to meet the high-temperature and pressure requirements.
FLIGHT® 252P Series Technical Data
|
TECHNICAL DATA
|
FLIGHT® ST252P
|
FLIGHT® HT252P
|
|---|---|---|
|
External Dimensions (L×W×H)
|
1735×1225×1975 mm (68.3×48.2×77.8 in)
|
1735×1205×1975 mm (68.3×47.4×77.8 in)
|
|
Build Cylinder Size1（L×W×H）
|
250×250×320 mm ( 9.8×9.8×12.6 in )
|
|
|
Net Weight
|
Approx. 1700 kg (3747.9 lb)
|
|
|
Laser Type
|
Fiber laser, 1×300W
|
|
|
Scanner
|
High-precision three-axis galvo system
|
|
|
Layer Thickness
|
0.06~0.3mm ( 0.0024-0.0118 in )
|
|
|
Scanning Speed
|
Max. 20 m/s ( 65.6 ft/s )
|
|
|
Max. Chamber Temperature
|
280°C ( 536℉ )
|
220°C ( 428℉ )
|
|
Thermal Field Control
|
Eight-zone heater & Intelligent temperature control systems
|
|
|
Temperature Regulation
|
Continuous real-time build surface temperature monitoring & optimization
|
|
|
Operating System
|
64 bit Windows 10
|
|
|
Comprehensive Software
|
BuildStar, MakeStar®
|
|
|
Data File Format
|
STL
|
|
|
Key Software Features
|
Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
|
|
|
Inert Gas Protection
|
Nitrogen
|
|
|
Power Supply
|
EUR/China: 400V±10%, 3~/N/PE, 50/60Hz, 25A/40A US: transformer sold with machine
|
|
|
Operating Ambient Temperature
|
22-28°C ( 71.6-82.4℉ )
|
|
|
Materials
|
FS3200PA-F, FS3201PA-F, FS3401GB-F, FS6140GF-F, WANFAB-PU95AB, Ultrasint® TPU 88A black, LUVOSINT® TPU X92A-1064 WT, Ultrasint® PA11 Black, more materials to come
|
|
