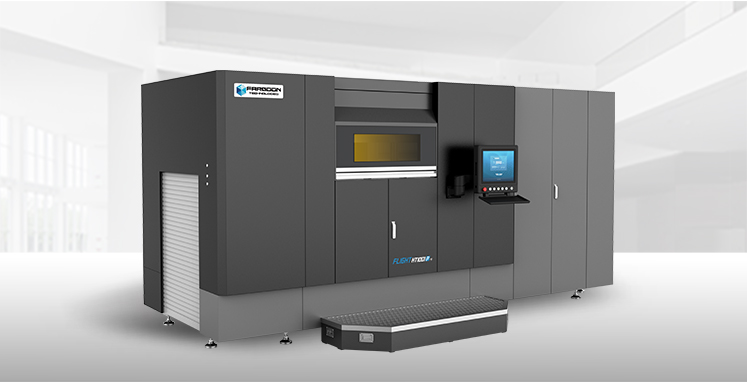

FLIGHT® HT1001P
FLIGHT® HT1001P
a CAMS System
×4 Laser | ×3 Power | ×3 Volume compared to standard SLS
Build Envelope：1000 x 500 x 450 mm
Quad-Fiber Laser For Maximum Productivity
The innovative application of high-speed FLIGHT® Technology on HT1001P CAMS platform boosts industry-leading productivity for large-sized parts. Featuring expanded build cylinder measuring 1000mm×500mm×450mm and powerful quad 300-watt fiber lasers, the Flight® HT1001P creates four ultra-fine laser spots with fast scanning speed of up to 20m/s (66ft/s) for each; the continuous batch production capability significantly improves machine uptime and offers up to 10 times throughput yield per floor area compared to standard SLS system within the same time frame.
Industrial Applications with FLIGHT® HT1001P

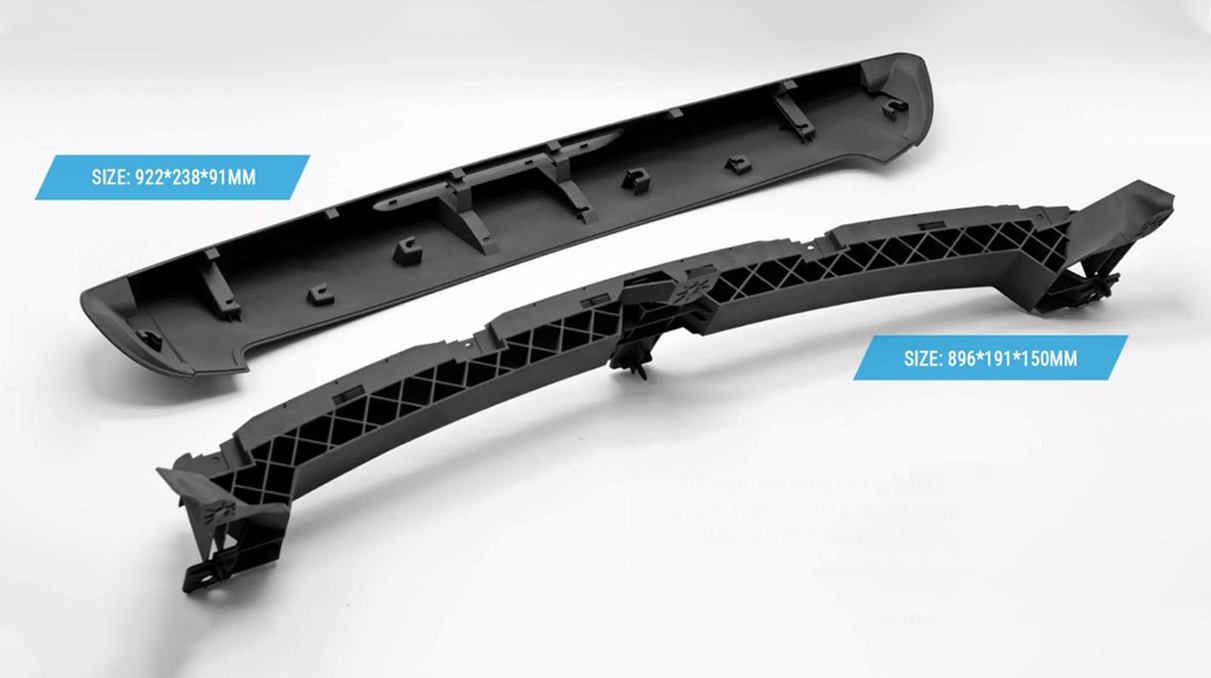

Automotive Spoiler Assembly
- Machine: FLIGHT® HT1001P-4
- Material: FS3201PA-F (PA12)
- Size: 896 x 191 x 150 mm and 922 x 238 x 91 mm
In collaboration with SAPW Automotive, this spoiler assembly designed for the new generation electric car features over sized length, multi-directional connections and structure features. Additively produced on Farsoon FLIGHT® HT1001P-4, this functional prototype can achieve optimal size accuracy for excellent matching, accelerated production cycle and strong mechanical properties; making it the perfect option for design verification during the vehicle development iteration.

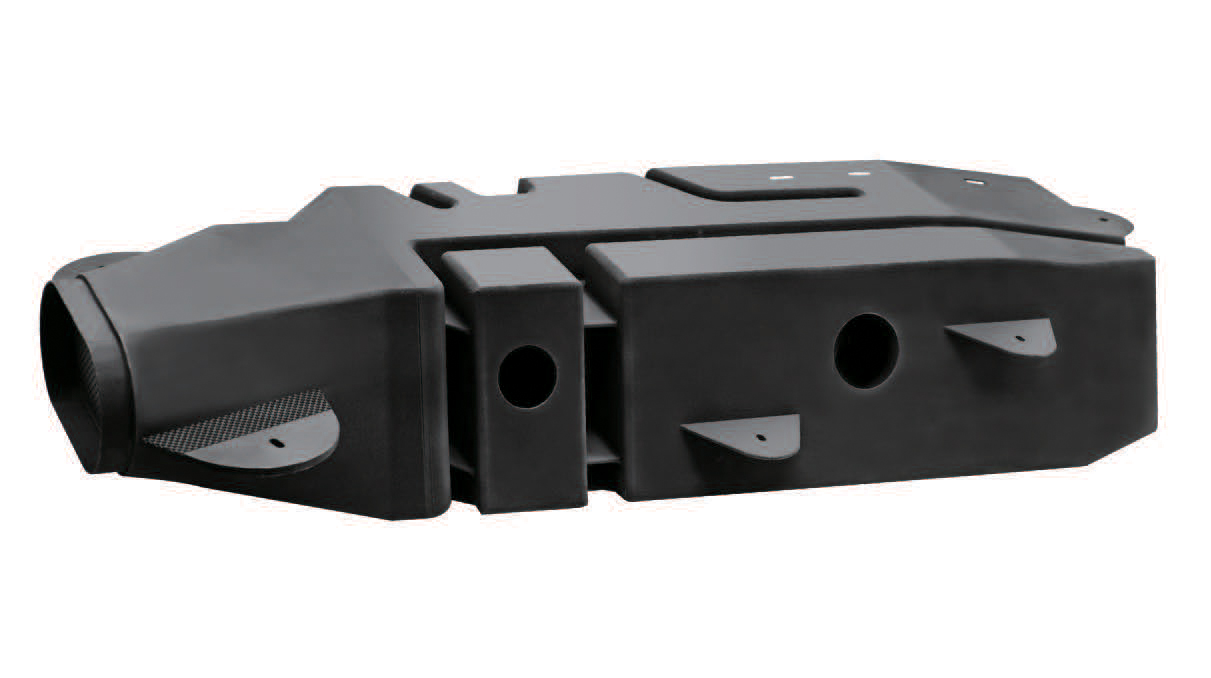

Truck Air Inlet System Component
- Machine: FLIGHT® HT1001P-4
- Material: FS3401GB-F (PA12 with Glass Bead filled)
- Size: 901×155×372mm
- Build Time: 10 Hours
The Truck Air Inlet System Component is designed for functional verification and fabricated in a single piece in 10 hours using Farsoon’s FLIGHT® HT1001P-4. The produced part showcases high mechanical properties,size-precision at a significant reduced cost compared to traditional manufacturing.
FLIGHT® HT1001P Technical Data
|
TECHNICAL DATA
|
FLIGHT® HT1001P-4
|
|---|---|
|
External Dimensions (L×W×H)
|
5820×2375×2185 mm (Full Module) (229.1×93.5×86.0 in)
2960×2375×2185 mm (Build Station only) ( 116.5×93.5×86.0 in ) |
|
Build Cylinder Size1（L×W×H）
|
1000×500×450 mm ( 39.4×19.7×17.7 in )
|
|
Net Weight
|
Approx. 5000 KG ( 11023.1 lb ) (Full Module) / 3500KG (7716.2 lb) (Build Station only)
|
|
Laser Type
|
Fiber Laser, 4×300W
|
|
Scanner
|
High-precision three-axis galvo system
|
|
Layer Thickness
|
0.06~0.3 mm ( 0.0024-0.0118 in )
|
|
Scanning Speed
|
Max. 20 m/s (66 ft/s
|
|
Max. Chamber Temperature
|
220°C ( 428℉ )
|
|
Thermal Field Control
|
Multi-zone heater & Intelligent temperature control systems
|
|
Temperature Regulation
|
Continuous real-time build surface temperature monitoring & optimization
|
|
Operating System
|
64 bit Windows 10
|
|
Comprehensive Software
|
BuildStar, MakeStar®
|
|
Data File Format
|
STL
|
|
Key Software Features
|
Open machine key parameters, real-time build parameter modification, three-dimensional visualization, diagnostic functions
|
|
Inert Gas Protection
|
Nitrogen
|
|
Power Supply
|
EUR/China: 400V±10%, 3~/N/PE, 50/60Hz, 50A
US: transformer sold with machine |
|
Operating Ambient Temperature
|
22-28°C ( 71.6-82.4℉ )
|
|
Materials
|
FS3200PA-F, FS3201PA-F, FS3401GB-F, FS6140GF-F, WANFAB-PU95AB, Ultrasint® TPU 88A black, LUVOSINT® TPU X92A-1064 WT, Ultrasint® PA11 Black, more materials to come
|
